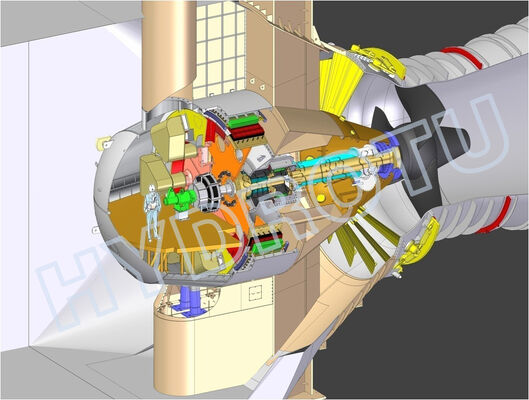

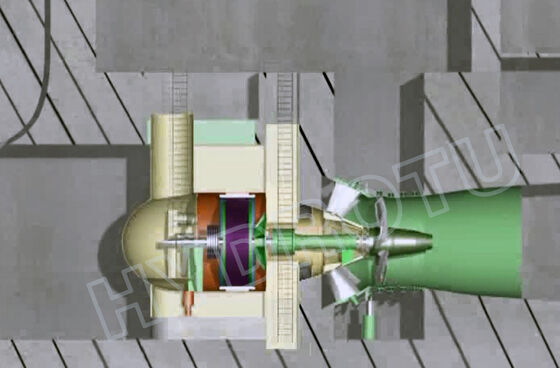

20 MW Power Output Bulb Hydro Turbine with 2m-20m Water Head and Stainless Steel Runner Blades for Efficient Hydropower

Ampliación de imagen : 20 MW Power Output Bulb Hydro Turbine with 2m-20m Water Head and Stainless Steel Runner Blades for Efficient Hydropower

Datos del producto:

Nombre de la marca:	HYDROTU
Model Number:	GZ006-WP

Contacto

20 MW Power Output Bulb Hydro Turbine with 2m-20m Water Head and Stainless Steel Runner Blades for Efficient Hydropower

descripción

cabeza de agua:	los 2m-20m	Material del corredor:	Acero inoxidable
Tipo de generador:	Sincronizado	Frecuencia:	50/60 Hz
Eficiencia:	Hasta el 98%	Velocidad de rotación:	50-300 RPM
Salida de energía:	100 kilovatios - 20 megavatios	Rango de capacidad:	1MW - 20MW

Power Output Range 20 MW Bulb Hydro Turbine

Product Overview

The Bulb Hydro Turbine is an advanced, efficient solution for harnessing hydroelectric power, designed to meet the growing demand for clean, renewable energy. Engineered for optimal performance across various water flow conditions, this horizontal hydro turbine is ideal for small to medium-scale hydroelectric power plants.

Operating at rotation speeds from 50 to 300 RPM, the turbine adapts to different site conditions and water flow rates, ensuring maximum energy extraction. Its horizontal configuration facilitates integration into water conduits while minimizing civil works and installation costs.

Key Features

Product Name: Bulb Hydro Turbine
Turbine Type: Bulb Tubular Turbine
Water Head Range: 2 - 30 Meters
Frequency: 50/60 Hz
Power Output Range: 100 KW - 20 MW
Efficient energy generation with advanced Bulb Hydro Turbine technology
Designed for low to medium head applications
Reliable solution for renewable energy projects

Technical Specifications

Parameter	Specification
Type	Bulb Hydro Turbine (Axial Flow Hydro Turbine, Kaplan Hydro Turbine)
Capacity Range	1MW - 20MW
Turbine Type	Bulb Tubular Turbine
Water Head	2m - 20m
Generator Type	Synchronous
Frequency	50 / 60 Hz

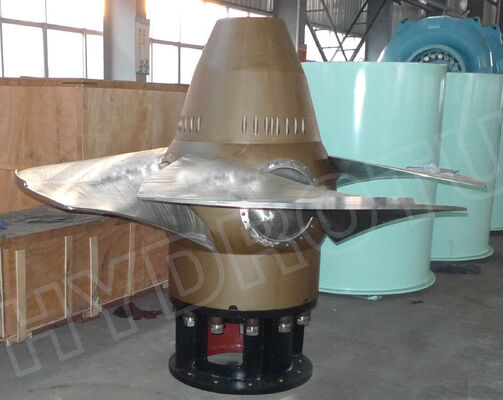

Runner Blades Material	Stainless Steel
Power Output Range	100 KW - 20 MW
Rotation Speed	50 - 300 RPM
Efficiency	Up To 98%

Applications

The HYDROTU Bulb Hydro Turbine is a cutting-edge axial flow hydro turbine ideal for harnessing renewable energy from rivers and streams with low to medium heads. With its versatile power output range, it serves both small-scale community projects and larger industrial power generation needs.

Applications include small hydropower plants, run-of-river power projects, irrigation canal power generation, rural electrification, agricultural support systems, and industrial facilities seeking sustainable energy solutions.

Customization Services

HYDROTU offers customized Bulb Hydro Turbine solutions tailored to specific project requirements. Our expertise includes optimizing hydro turbine runner design and Kaplan Hydro Turbine configurations to maximize energy conversion efficiency for various site conditions.

Support & Services

Our comprehensive support package includes dedicated technical assistance, installation guidance, routine maintenance services, and troubleshooting. We provide detailed documentation, customized training programs, regular software updates, and performance monitoring to ensure optimal operation and extended lifespan of your turbine installation.
