Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects
Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects
Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects

Ampliación de imagen :  Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects

Datos del producto:
Lugar de origen: Porcelana
Nombre de la marca: HYDROTU
Certificación: CE
Número de modelo: turbina pelton
Documento: Enquiry sheet.doc
Pago y Envío Términos:
Cantidad de orden mínima: 1
Tiempo de entrega: 5-10 meses
Condiciones de pago: LC, T/T
Contacto

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects

descripción
Nombre del producto: Turbina hidráulica de Pelton Tipo: Turbina de impulso
Modo de diseño: horizontales o verticales Capacidad de energía: 0,1-10 megavatios
Rango de caudal: Caudales bajos a medios Velocidad: Variable, normalmente de 500 a 1000 RPM
Material del corredor: Acero inoxidable Anillo de la boquilla: Acero Inoxidable 0Cr13Ni4Mo (CA6NM)
Tipo de generador: Generador sincrónico ac Mantenimiento: Bajo mantenimiento gracias a un diseño sencillo
Garantía: 2 años
Resaltar:

0.1-10 MW Power Capacity Pelton Hydro Turbine

,

Stainless Steel Runner Pelton Turbine

,

Low Maintenance Hydro Turbine

Pelton Hydro Turbine for High Water Head Hydropower Projects
HYDROTU Pelton turbines deliver exceptional quality and performance for high-head hydropower applications, combining advanced technical design with robust manufacturing processes.
Technical R&D and Design Features
  • Advanced Flow Field Simulation Technology: Precise simulation of gas-water multiphase flow systems and jet-bucket interactions, with results validated against experimental data for optimized bucket profiles and enhanced unit performance.
  • Digital Lifecycle Design: Comprehensive digital management from unit design and selection to operation and maintenance, featuring automation control systems and remote monitoring capabilities.
  • Modular and Integrated Design: Vertical integrated design for standardized small hydropower units, combining nozzles, jet deflectors, and synchronous generators into compact "water-to-electricity" systems with simplified installation.

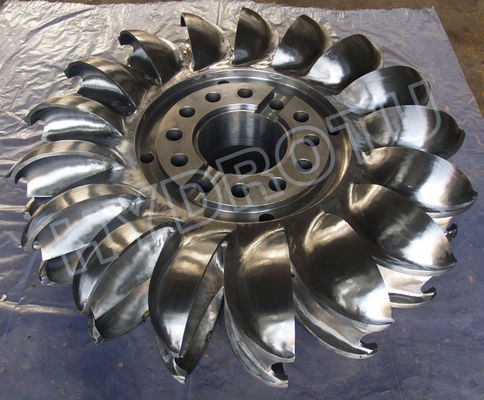

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 0
Structural and Manufacturing Process Features
  • High-Precision Runner Manufacturing: Four-step manufacturing process including forging disc processing, root milling, bucket head welding, and fine milling with micron-level error control for operational stability under high heads.
  • Dual Manufacturing Systems: Customized large-scale units for high-output scenarios and standardized small-scale units for cost-effective small to medium hydropower applications.
  • Core Component Optimization: Flow field simulation-optimized nozzles and jet deflectors with rapid response capabilities for load changes and enhanced operational safety.

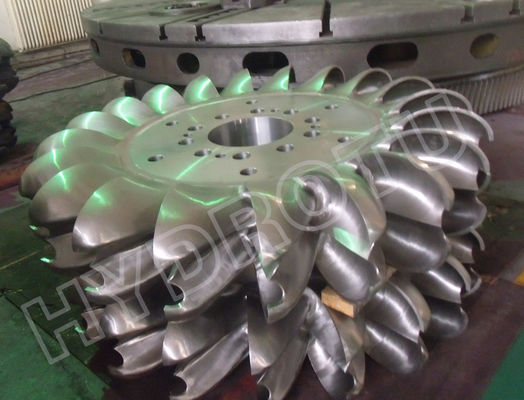

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 1
Performance and Efficiency Features
  • Ultra-High Head Adaptability: Single-unit output range of 0.1MW to 10MW with maximum runner diameter of 2m, suitable for head ranges of 80m-1000m.
  • Wide Condition Efficiency: Maintains high energy conversion efficiency across rated and part-load conditions through optimized bucket profiles and flow field design.
  • High Reliability and Long Service Life: High-strength forged steel components with dynamic balancing and non-destructive testing for long-term stable operation with minimal failure rates.

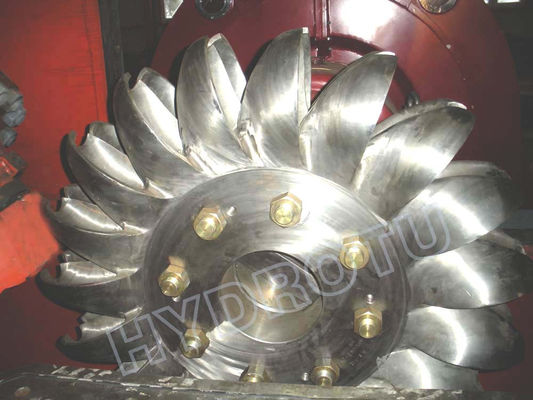

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 2
Application Scenarios and Adaptability
Comprehensive Head and Output Coverage: Customized units suitable for 80m-1000m head conditions and 0.1MW-10MW power projects, meeting diverse global small to medium hydropower station requirements.
Global Implementation Experience: Widely deployed in high-head resource areas including mountainous regions and canyons for local clean energy supply.
Retrofit and Upgrade Compatibility: Modernization transformation and capacity expansion services for existing Pelton units, improving output and efficiency while preserving original infrastructure.
Full Industrial Chain Services
Complete Turnkey Solutions: Comprehensive lifecycle services from consultation and engineering design to equipment manufacturing, installation, commissioning, operation maintenance, spare parts supply, and personnel training.
Global Service Network: Production base and service center in Hangzhou, China, providing rapid response for customization, installation, and troubleshooting with efficient modernization services for existing power stations.
Sustainable Design Philosophy: Green, low-carbon design aligned with hydropower's clean energy attributes, featuring minimal operational emissions and consideration for water resource management and flood control functions.

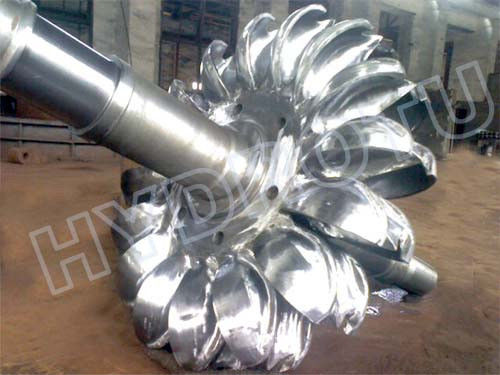

Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 3 Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 4 Pelton Hydro Turbine with 0.1-10 MW Power Capacity, Stainless Steel Runner, and Low Maintenance for High Head Hydropower Projects 5
